| Brand Name: | N/A |
| Model Number: | DHM1413 |
| MOQ: | 500MTS |
| Payment Terms: | T/T |

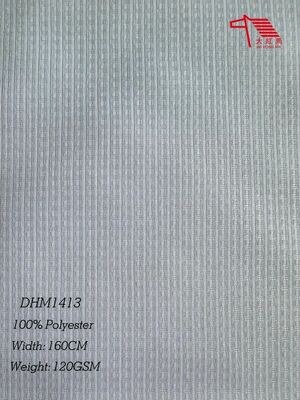

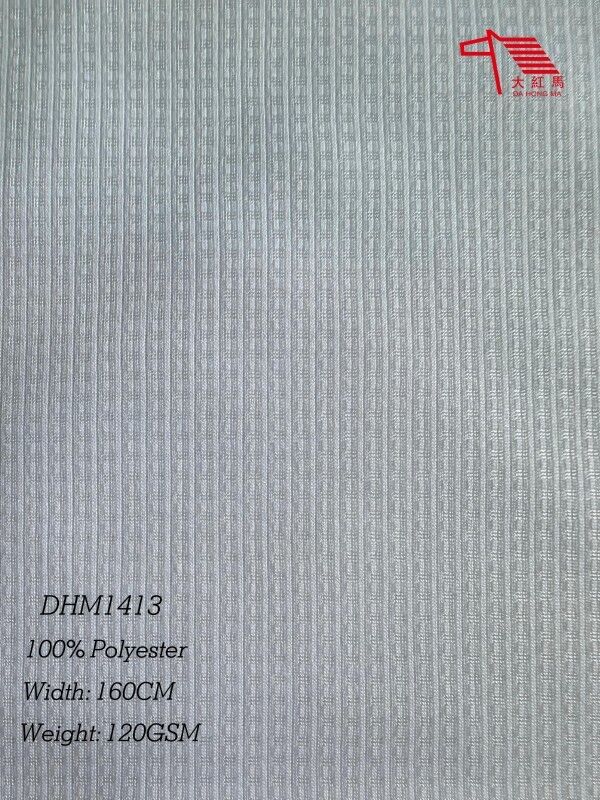

120GSM Double Face Polyester Vertical Stripe With Bright Yarn One Side Plain
This 120GSM double face polyester fabric offers two distinct surfaces in one lightweight textile: one side features a crisp vertical stripe pattern enhanced by subtle horizontal bright yarns that catch light for a premium shimmer, while the other side is a clean, smooth plain weave. The double face construction makes the fabric fully reversible – use the striped side for visual impact on outer layers, or flip to the plain side for a minimal, professional finish on linings or understated garments. At 120 grams per square meter, the fabric is breathable and quick‑drying, ideal for spring/summer sportswear, scarves, lightweight jackets, and reversible uniforms. The 100% polyester composition provides excellent moisture wicking (sweat dries in about 20 minutes), soft hand, and resistance to shrinking and fading. For designers seeking versatility, this fabric delivers two looks in one without adding weight or complexity.
| Parameter | Value / Range |
|---|---|
| Model Code | DHM1413 |
| Composition | 100% Polyester |
| Structure | Double face – one side vertical stripe with horizontal bright yarn, one side plain knitted |
| Stripe Side | Vertical stripes + subtle lustrous weft yarns |
| Plain Side | Smooth, non‑textured surface |
| Weight | 120 GSM ±5% |
| Finished Width | 160 cm (63 inches) |
| Air Permeability | 200 – 250 CFM (ASTM D737) |
| Water Absorption | < 0.2% of fabric weight |
| Drying Rate (from soaked) | 20 minutes at 23°C, 50% RH |
| Moisture Wicking (Capillary Rise) | > 8 cm in 10 minutes |
| Tensile Strength (Warp) | > 180 N / 5 cm (ASTM D5034) |
| Tear Strength (Weft) | > 20 N (ASTM D2261) |
| Pilling Resistance (plain side) | Grade 4 (ISO 12945‑2) |
| Color Fastness to Light | Grade 4 (AATCC 16, 40 hours) |
| Color Fastness to Perspiration | Grade 4‑5 (AATCC 15) |
| Shrinkage (after 5 washes, 40°C) | < 2% |
| Opacity | Semi‑opaque – dark colors fully opaque; light colors slightly sheer |
| Reversibility | Yes – two distinct surfaces |
| Standard Color Combinations | Navy/white stripe, black/silver stripe, royal/white, etc. (plain side matching) |
| Custom Stripe & Plain Color | Yes (MOQ 500 m) |
| Lead Time (stock) | 25‑30 days |
| Lead Time (custom) | 25‑30 days + 10‑12 days lab dip |
Why this double‑face fabric with stripe and plain sides stands out:
Two distinct surfaces in one fabric – One side has a vertical stripe with horizontal bright yarns for a premium, dynamic look. The other side is a clean, smooth plain weave. Use the same fabric for outer shells and linings.
Fully reversible – Create garments with different interior and exterior appearances without extra fabric. Ideal for reversible jackets, scarves, and bag panels.
120GSM lightweight – Comfortable for summer wear and breathable linings. Reduces overall garment weight.
Vertical stripe with bright yarn adds subtle shine – The horizontal bright yarns catch light, giving the striped side a sophisticated shimmer without being flashy.
Plain side is soft and versatile – Smooth against the skin, perfect for linings or when a minimal look is needed.
Breathable (200‑250 CFM) and quick drying (20 minutes) – Air flows freely, sweat evaporates rapidly. Excellent for activewear and humid conditions.
Easy care and colorfast – Machine wash cold, hang dry. Resists shrinking, fading, and pilling.
Primary applications for 120GSM double‑face stripe/plain fabric:
Reversible sportswear jackets and vests
Lightweight scarf wraps and neck gaiters
T‑shirt panels and polo shirt plackets (striped side outside, plain side inside)
Uniform linings and contrast trims
Bag linings and pocket interiors (plain side out, stripe side hidden)
Travel and leisure shirts (quick dry, wrinkle‑resistant)
Q1: What is the difference between the two sides of this fabric?
Side A features a vertical stripe pattern with fine horizontal bright yarns that create a subtle shimmer when the fabric moves. Side B is a clean, smooth plain weave with no texture or pattern. Side A is designed for outer, visible surfaces where you want visual interest. Side B is ideal for linings, inner layers, or when a minimalist look is preferred.
Q2: Is 120GSM suitable for a reversible jacket?
Yes, 120GSM is a lightweight choice for reversible spring/summer jackets, windbreakers, or layering pieces. It provides enough body to hold shape while remaining breathable and packable. For colder weather, we recommend layering or choosing a 150‑170GSM version.
Q3: Does the bright yarn affect the plain side?
No. The bright yarns are only present on the striped side (Side A). The plain side (Side B) is completely smooth and free of any shiny accents. This clean side is soft against the skin and takes printing or embroidery very well.
Q4: Is a recycled polyester version available for this double‑face fabric?
Yes. We offer a GRS‑certified recycled polyester version of this exact 120GSM double‑face fabric. The recycled yarn is sourced from post‑consumer PET bottles. The mechanical properties – tear strength (>20N), air permeability (200‑250 CFM), drying time (20 minutes) – are all within 5% of the virgin version. Both the stripe side (including the bright yarn effect) and the plain side retain the same appearance and hand feel. Minimum order for recycled is 800 meters. Please request a recycled swatch and a copy of the GRS certificate for verification.
Q5: What is the typical lead time for this fabric?
For custom stripe designs (e.g., stripe width, bright yarn color) or custom Pantone colors on both sides, add 10‑12 days for lab dip development and approval. Bulk production then takes 25‑30 days. Expedited service may be available for orders ≥2000 meters – please inquire.
Q6: How do I care for garments made from this double‑face fabric?
Machine wash cold (30°C) with like colors. Do not bleach. Tumble dry low or hang dry – the fabric dries quickly. Do not use fabric softener; it can coat the fibers and reduce breathability. Iron on low (synthetic setting) if needed. The stripe side and plain side will both remain sharp and colorfast for over 50 washes.
Q7: Can I customize the stripe color and the plain side color differently?
Yes. We can produce custom combinations where the stripe side has one color (e.g., navy stripe with silver bright yarn) and the plain side a different solid color (e.g., light grey). Minimum order for such two‑color reversible designs is 500 meters. Lab dip lead time is 12‑15 days. Standard stock options have matching plain side color (e.g., navy/white stripe with navy plain side).
*This technical data sheet is based on production samples of DHM1413 double‑face fabric. Stock stripe/plain combinations MOQ: 200 linear meters. Custom designs MOQ: 500 meters. Recycled version MOQ: 800 meters. Lead time: 25‑30 days for stock colors, 35‑42 days for custom colors (including lab dip).
Q7: Can I get custom colors for my team or brand?
For exact Pantone matching, the minimum order is 500 meters. Lab dip lead time is 20-25days. Pre‑production samples are available for approval.
This technical data sheet is based on production samples of DHM1652 weft knit pique mesh. Stock colors MOQ: 200 linear meters. Custom colors MOQ: 500 meters. Recycled version MOQ: 800 meters. Lead time: 25‑30 days for stock colors, 35‑42 days for custom colors (including lab dip).
