| Brand Name: | N/A |
| Model Number: | DHM1417 |
| MOQ: | 500MTS |
| Payment Terms: | T/T |

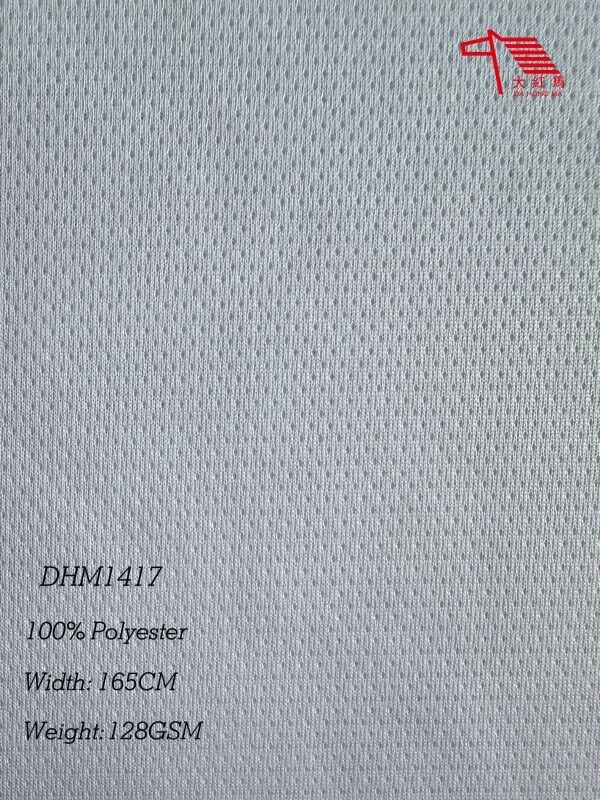

128GSM Weft Knit Small Mesh 100% Polyester Ultra Lightweight Breathable
This 128GSM weft knit small mesh fabric is made from 100% polyester and engineered specifically for sportswear and accessories that demand extreme lightweight, high breathability, and a soft hand feel. The weft knitted structure provides excellent crosswise stretch and a soft drape, while the small mesh openings allow air to circulate freely while maintaining adequate opacity. At 128 grams per square meter, this fabric is ultra‑lightweight – a full‑size training vest or shoe upper panel weighs only about 100‑120 grams, making it nearly unnoticeable to the wearer. The 100% polyester composition ensures excellent moisture wicking (sweat evaporates in about 18 minutes) as well as resistance to shrinkage and wrinkling. For sportswear linings, shoe uppers, hat side panels, and backpack pockets, this ultra‑light breathable weft knit small mesh delivers superior airflow and freedom of movement.
| Parameter | Value / Range |
|---|---|
| Model Code | DHM1417 |
| Composition | 100% Polyester |
| Knit Type | mesh |
| Weight | 128 GSM ±5% |
| Finished Width | 165 cm (65 inches) |
| Air Permeability | 280 – 340 CFM (ASTM D737) |
| Water Absorption | < 0.2% of fabric weight |
| Drying Rate (from soaked) | 18 minutes at 23°C, 50% RH |
| Moisture Wicking (Capillary Rise) | > 8 cm in 10 minutes |
| Tensile Strength (Warp) | > 180 N / 5 cm (ASTM D5034) |
| Tear Strength (Weft) | > 18 N (ASTM D2261) |
| Snag Resistance | Grade 3.5 (ASTM D3939) |
| Pilling Resistance | Grade 3.5‑4 (ISO 12945‑2) |
| Color Fastness to Light | Grade 4 (AATCC 16, 40 hours) |
| Color Fastness to Perspiration | Grade 4‑5 (AATCC 15) |
| Shrinkage (after 5 washes, 40°C) | < 2% |
| Opacity | Light colors semi‑sheer; dark colors fully opaque |
| Standard Colors | 20+ sport colors (black, white, navy, royal, grey, etc.) |
| Custom Pantone | Yes (MOQ 500 m) |
Why this ultra‑light weft knit small mesh is ideal for sportswear:
128GSM ultra‑lightweight – Finished garments feel almost weightless. Perfect for marathon singlets, triathlon tops, and hot‑weather training.
High breathability (280‑340 CFM) – Air flows freely through the fine mesh, sweat vapor escapes instantly. Keeps the body dry in humid conditions.
Very quick drying (18 minutes) – Dries rapidly after soaking. Ideal for rain‑delayed matches or frequently washed team gear.
Weft knit for soft drape – Smooth against the skin, no scratchiness. Crosswise stretch allows natural movement without restriction.
Durable and snag resistant – Despite being lightweight, snag resistance Grade 3.5 and pilling resistance Grade 3.5‑4 handle normal sports friction.
Easy care and colorfast – Machine wash cold, hang dry. No shrinking, no fading. Dark colors are fully opaque.
Versatile – Suitable for running singlets, training liners, hat side panels, shoe uppers, swimwear linings, and bag ventilation pockets.
Primary sportswear applications:
Running singlets and race vests
Training top linings and underarm vent panels
Hat side panels (breathable summer caps)
Athletic shoe uppers (ultra‑light running shoes)
Swimwear linings (quick dry, non‑absorbent)
Bag ventilation pockets and shoe compartments
Team jersey back vent panels
Q1: How does 128GSM small mesh compare to 150GSM or heavier meshes?
128GSM is one of the lightest grades available – thinner, more breathable (280‑340 CFM vs. 220‑260 CFM), and faster drying than 150GSM. It is designed for ultra‑light applications like race vests and summer base layers. The trade‑off is slightly lower tear strength (>18N), which is still sufficient for normal sportswear use. For higher durability, a 150‑170GSM version is available.
Q2: Is this fabric see‑through? Can light colors show skin?
Dark colors (black, navy, royal, charcoal) are fully opaque. Light colors (white, light grey, pastels) may be semi‑sheer when stretched due to the mesh structure. For light‑colored outer garments, we recommend using a liner or choosing a dark color. As a lining or base layer, slight sheerness is acceptable.
Q3: What are the advantages of weft knit compared to warp knit small mesh?
Weft knit small mesh offers better crosswise stretch and a softer, drapable hand feel – more comfortable against the skin. Warp knit mesh is more dimensionally stable but stiffer. For running singlets and linings, weft knit is the preferred choice.
Q4: Is a recycled polyester version available for this 128GSM small mesh?
Yes. We offer a GRS‑certified recycled polyester version of this exact 128GSM weft knit small mesh. The recycled yarn is sourced from post‑consumer PET bottles. The breathability (280‑340 CFM), drying time (18 minutes), tear strength (>18N), and snag resistance (Grade 3.5) are all within 5% of the virgin version. The recycled fabric also maintains the same soft hand and colorfastness. Minimum order for recycled is 800 meters. Please request a recycled swatch and a copy of the GRS certificate for verification.
Q5: How do I care for garments made from this mesh?
Machine wash cold (30°C) with like colors. Do not bleach. Tumble dry low or hang dry – the quick dry property means line drying takes about 1 hour. Do not use fabric softener; it can coat the fibers and reduce breathability. Avoid ironing directly on the mesh. Following these steps, the fabric will retain its performance for over 50 washes.
Q6: Can this fabric be sublimation printed?
Yes. The 100% polyester surface accepts sublimation ink well. Because the mesh is fine, the print will have a slight dotted texture, but team names and numbers remain sharp. For full‑coverage solid prints, a solid jersey is recommended. We offer a white version as a ready‑to‑sublimate base.
Q7: What are the custom color options and MOQs?
For custom Pantone matching, the minimum order is 500 meters with a lab dip lead time of 25-30 days. Pre‑production samples are available.
